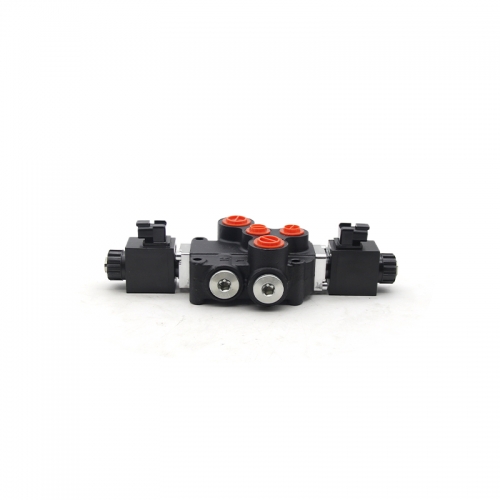

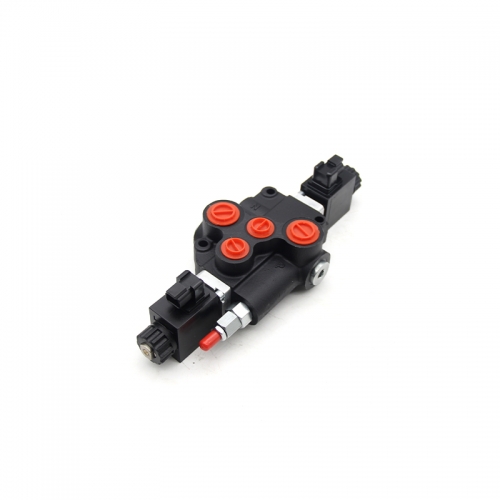

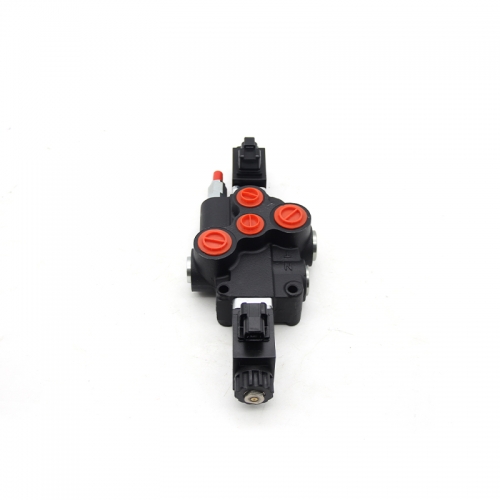

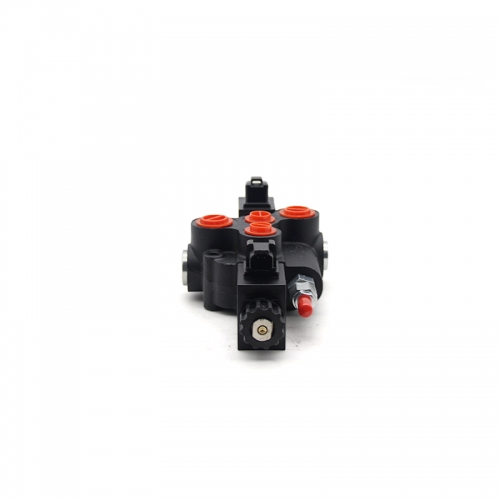

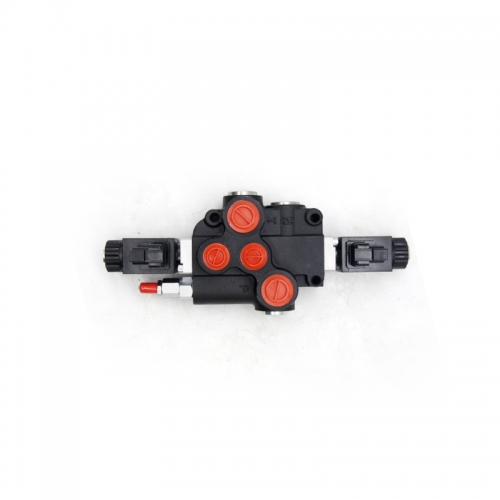

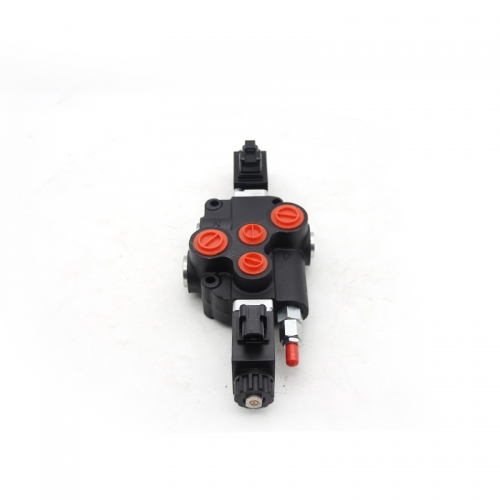

Z80 hydraulic solenoid control valve

Brand :Zhongyuan

Product origin :China

Delivery time :30 days

Supply capacity :10000 PCS per month

Z80 hydraulic solenoid control valve


The monoblock directional control valves-solenoid operated, offer perfect choice whether you are designing a new system or just simply trying to get more out of your current system. With two special spools and 6 different monoblock housings these valves can meet the specific needs of your application and hydraulic schemes by their double acting in 3 positions A and D spools.


1 Inner check valve: The check valve inside the valve body is to insure the hydraulic oil will not be returned.

2 Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

3 Oil way: Parallel circuit, power beyond option

4 Coils, Connector ISO4400: 12VDC, 24VDC

5 Threads:P,A,B-G1/2, SAE10, T-G3/4,SAE12

6 Valve construction: Monoblock construction, 1-6 levers.

7 Precise bore honing and spool grinding results in less cross-port leakage and less wasted energy. These precise valves also allow for interchangeable spools for easy on place maintenance.

Parameters

Nom.Pressure

(MPa)

Max.Pressure

(MPa)

Nom.Flow rate

(L/min)

Max.Flow rate

(L/min)

Back Pressure

(MPa)

Hydraulic Oil

Tem.rang

Visc.rang

(mm2/S)

Filtrating Accuracy

(μm)

20

31.5

80 80

1

-20+80

10400

10




Code

Number of spools

Nominal flow rate
L/min

Max. pressure
P port
bar

Voltage
V

Z80-A-ES3-12VDC/24VDC-G

1

80

250

12/24

2Z80-AA-ES3-12VDC/24VDC-G

2

80

250

12/24

3Z80-AAA-ES3-12VDC/24VDC-G

3

80

250

12/24

Z80-AAAA-ES3-12VDC/24VDC-G

4

80

250

12/24

Z80-AAAAA-ES3-12VDC/24VDC-G

5

80

250

12/24

Z80-AAAAAA-ES3-12VDC/24VDC-G

6

80

250

12/24
