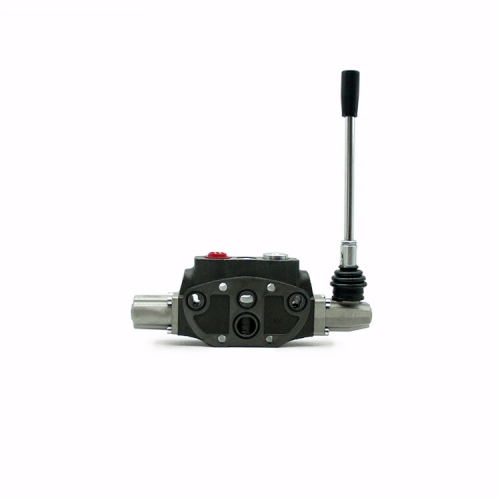

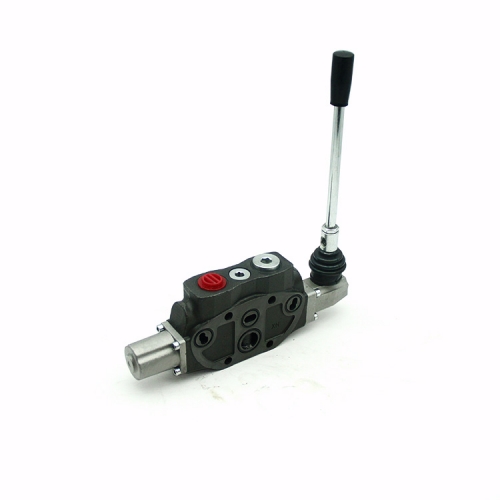

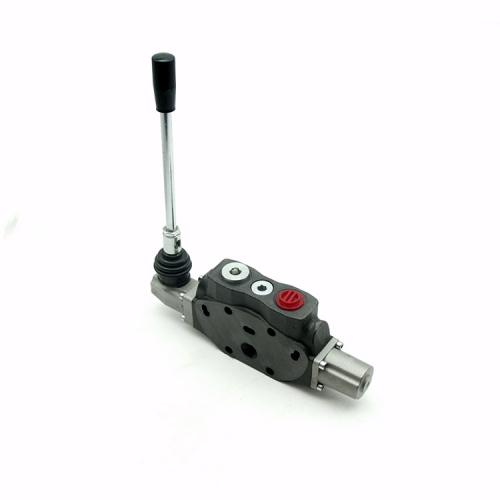

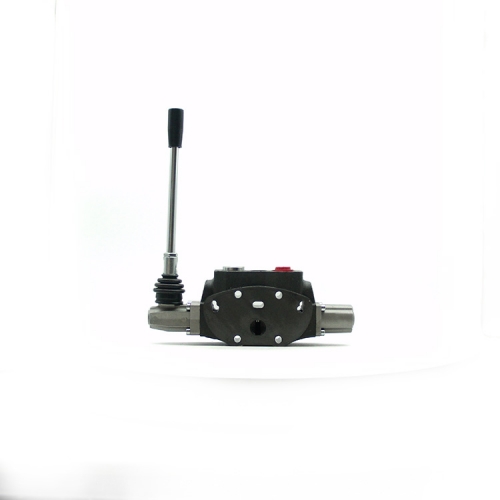

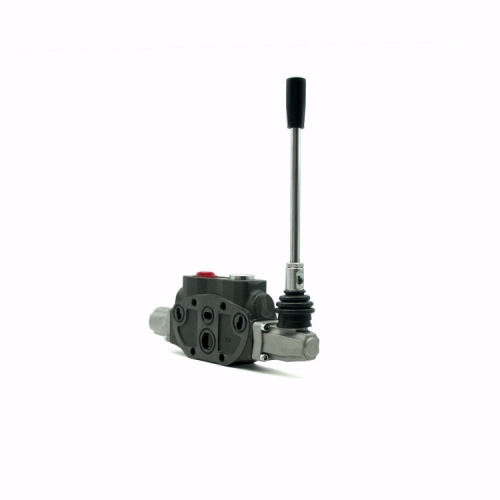

HS4 hydraulic sectional valve with 8 fuction and electical button for forest machinery
Brand :Zhongyuan
Product origin :China
Delivery time :30 days
Supply capacity :10000 PCS per month
SD8 hydraulic sectional valve with 8 fuctions and electical button for forest machinery
1. Nominal Flow:80L/min, Working Pressure 160-310Bar (16Mpa-31.5Mpa)
2. Control way: Manual control, Pneumatic Control,
3. Positioning Returning Modes:W(Detent); T(Spring Return)
4. Spool Functions: O Y A etc
5. Thread: G1/2; SAE8
6. Oil Way: Parallel Circuit
7. Material: Casting iron
8. Application: front loader,earth moving machines, construction equipment, etc
9. Number of Spool./level: 1--12
| Nom. Pressure(Mpa) |
Max.Pressure (Mpa) |
Nom.Flow rate(L/min) | Max.Flow rate (L/min) | Back Pressure(Mpa) | hydraulic oil | ||
| Tem.range(ºC) | Visc.rang(mm²/S) | filtrating accuracy(um) | |||||
| 20 | 31.5 | 90 | 90 | ≤1 | -20~+80 | 10-400 |
≤10 |
