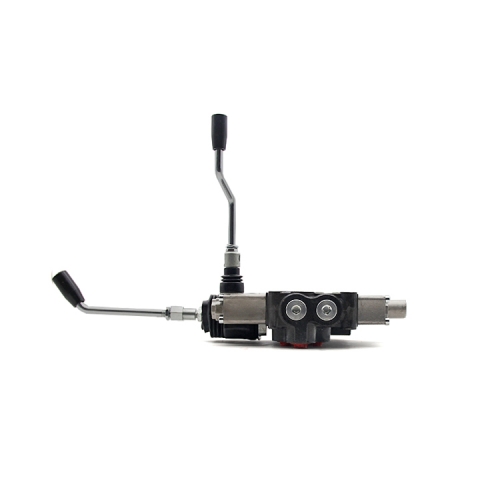

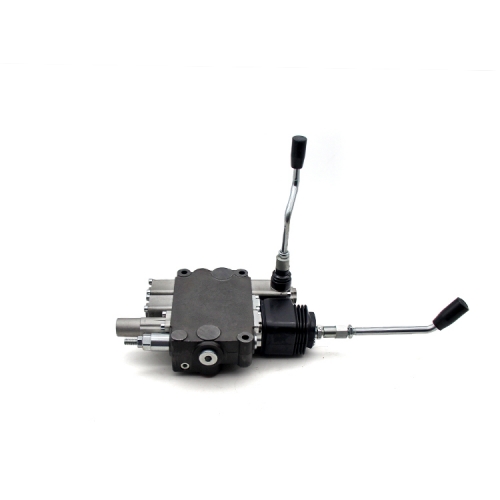

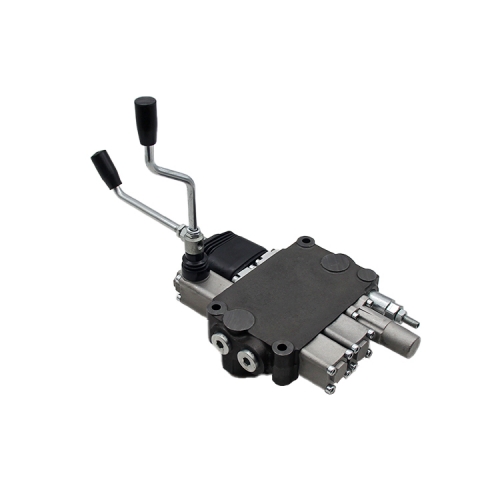

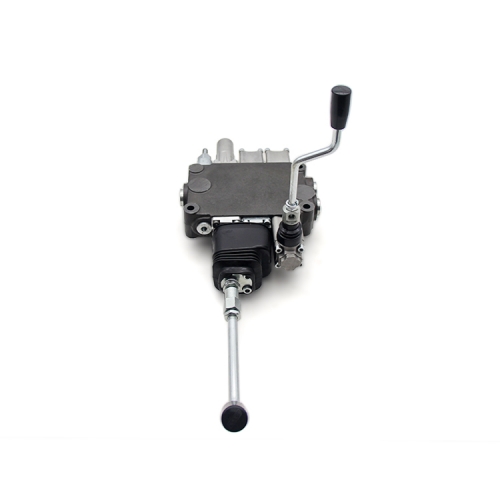

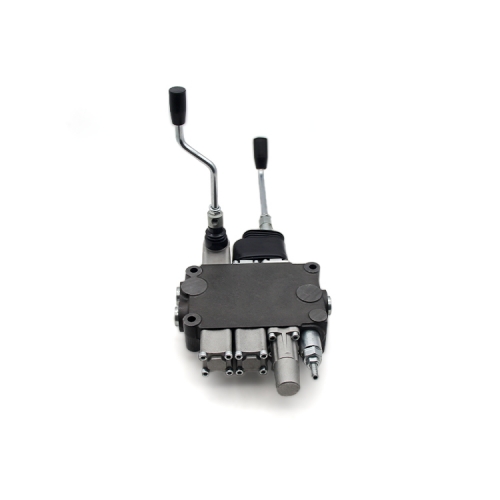

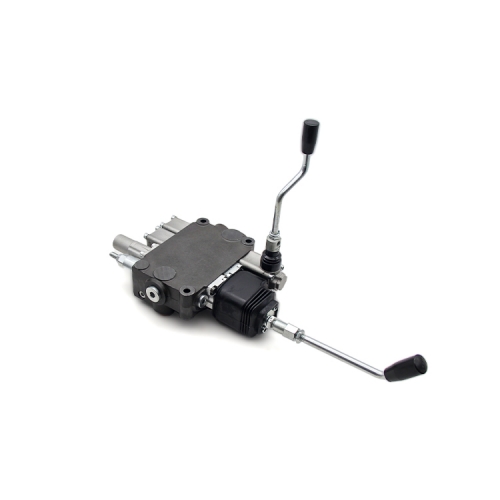

HM45 hydraulic monoblock control valve

Brand :Zhongyuan

Product origin :China

Delivery time :30 days

Supply capacity :10000 PCS per month

Hydraulic Directional Control Valve M45

Specifications
M45 series valves with middle-high pressure monoblock construction is developed based on Europ technology.
Inner check valve: The check valve inside the valve body is to insure the hydraulic oil will not be returned.
Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure
Oil way: Parallel circuit, power beyond option.
Control way: Manual control, pneumatic control, hydraulic and electric control for optional.
valve construction: monoblock construction, 1-6 levers.
Spool function: O.P.Y.A

Option: Hydraulic Lock is avaliable to be added on A and B port.Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.

PRODUCT NAME
Hydraulic Sectional Valve
Standard
EUROPE
Color
GRAY
Application
TRACTOR, FRONT LOADER
FLOW
45LPM
Certification
ISO90001
Banks
1-6banks
Warranty
1 years
Item Name
M45
Function
motor spool, cylinder spool, etc,
Port Standard
BSPP,SAE, NPT,UNF
MOQ
1 Piece
Model Number
M45
Control Way
detent and spring return.
Pressure
160-315Bar
Port valve
loading pressure 100-200bar
