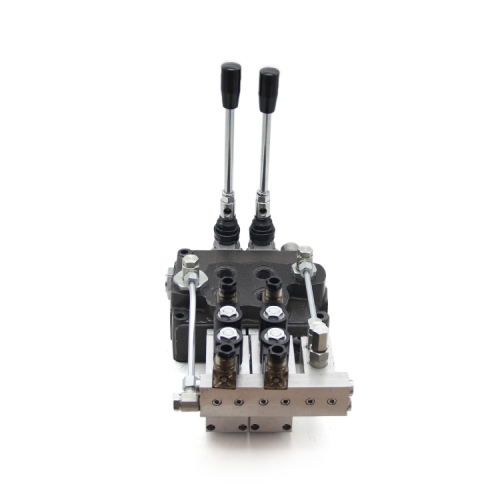

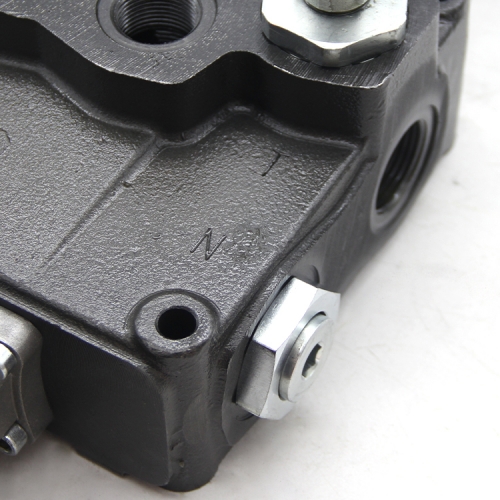

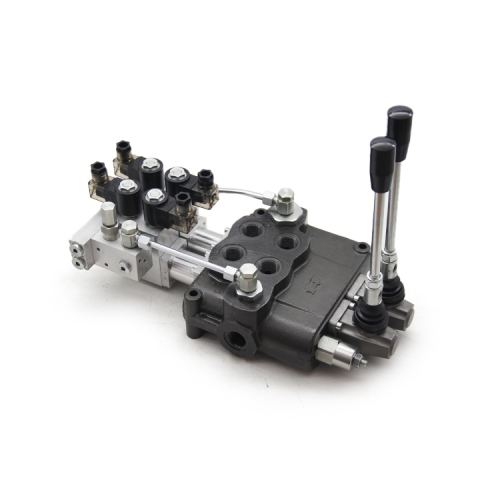

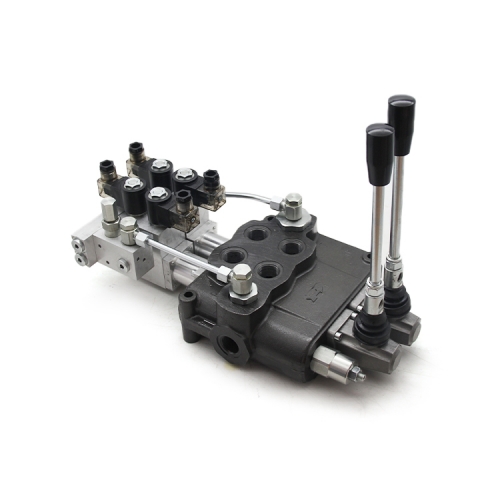

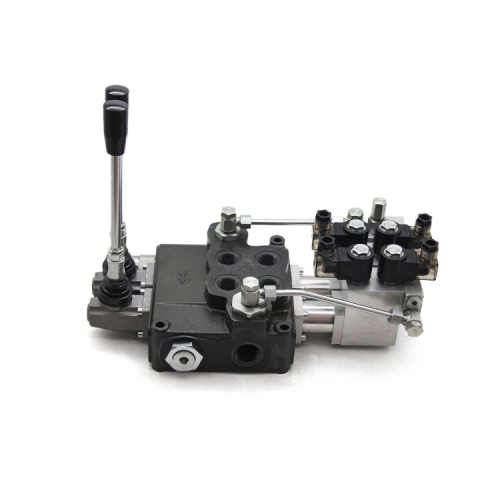

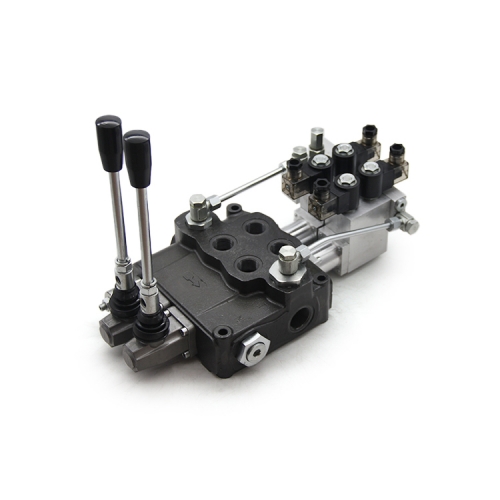

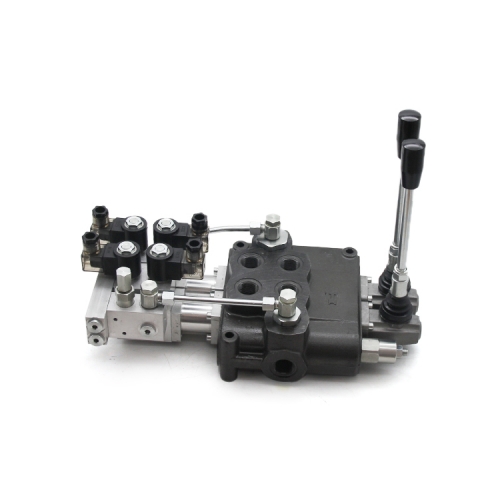

SD18 Hydraulic Directional Monoblock Control Valve

Brand :Zhongyuan

Product origin :China

Delivery time :30 days

Supply capacity :10000 PCS per month

SD18 series integral valve has introduced European advanced technology, with compact structure, flow rate of 120L/min, light weight, high pressure resistance. The valve USES parallel oil circuit, designed with a pressure outlet and other hydraulic components connected to provide power source. The valve is widely used in construction machinery, sanitation machinery, oil field equipment, mining machinery and other machinery hydraulic system.

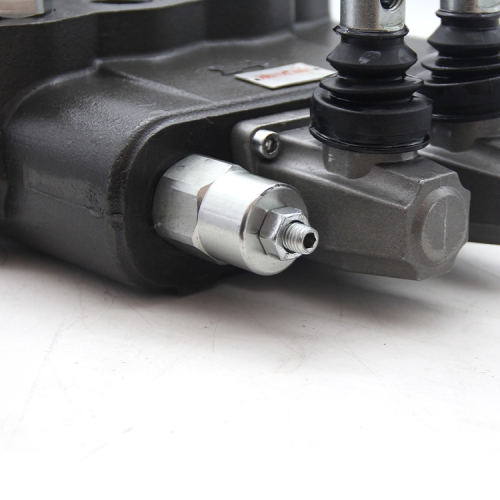

1 Fitted with a direct or pilot operated main pressure relief valve.

2 Parallel circuit.

3 Optional carry-over port.

4 Diameter 25 mm - 0.98 in interchangeable spools.

5 A wide variety of service port valves.

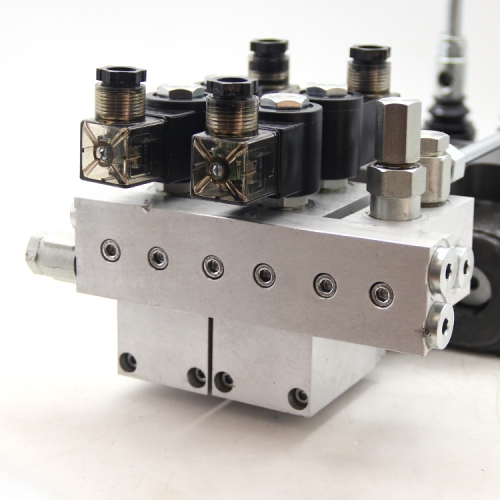

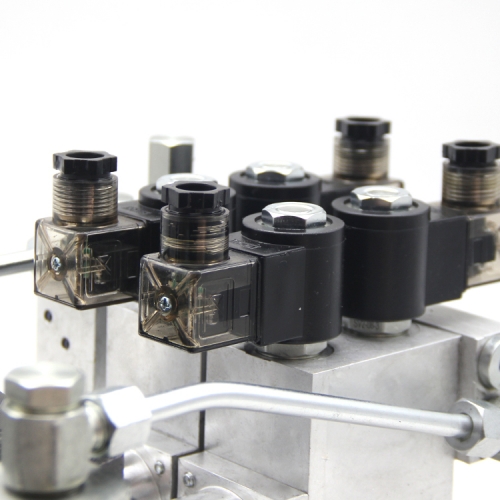

6 Available manual, pneumatic, electro-pneumatic, hydraulic and electro-hydraulic spool control kits.

Parameters

Nom.Pressure

(MPa)

Max.Pressure

(MPa)

Nom.Flow rate

(L/min)

Max.Flow rate

(L/min)

Back Pressure

(MPa)

Hydraulic Oil

Tem.rang

Visc.rang

(mm2/S)

Filtrating Accuracy

(μm)

20

31.5

120

160

1

-20+80

10400

10

Port Size

MAIN PORTS

BSP

UN-UNF

METRIC

Inlet P

G3/4,G1

7/8-14 (SAE 10)

1 5/16-12 UN-2B (SAE 16)

Ports A and B

G3/4,G1

3/4-16 (SAE 8)

1 1/16-12 UN-2B (SAE 12)

Outlet T

G1

7/8-14 (SAE 10)

1 5/16-12 UN-2B (SAE 16)

Carry-over C

G1

7/8-14 (SAE 10)

1 5/16-12 UN-2B (SAE 16)
