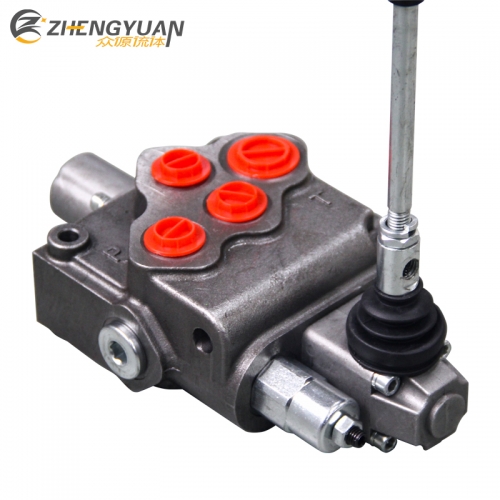

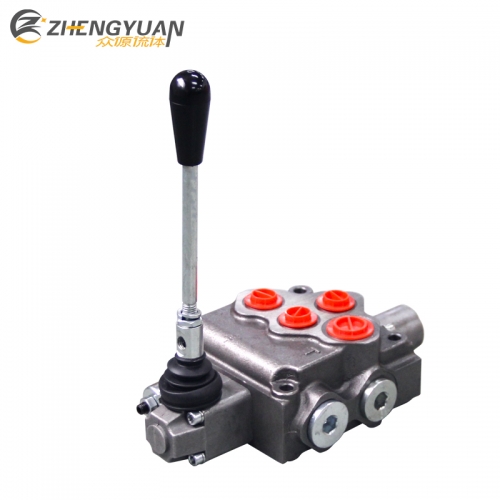

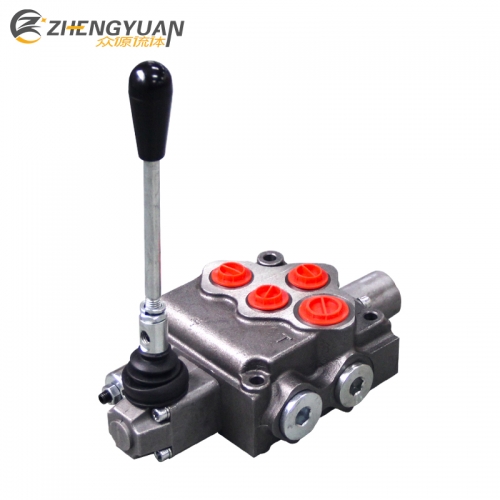

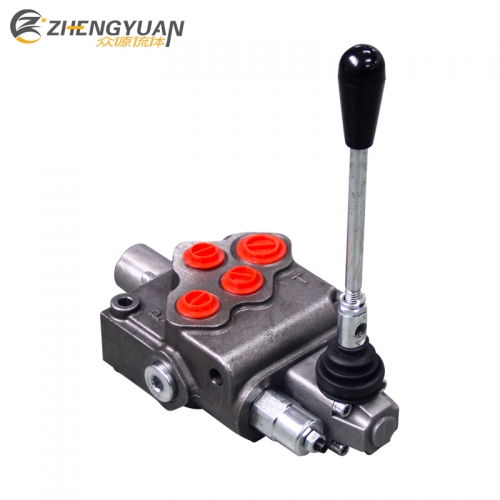

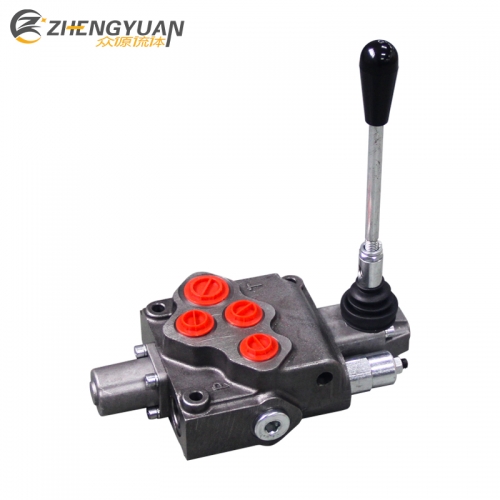

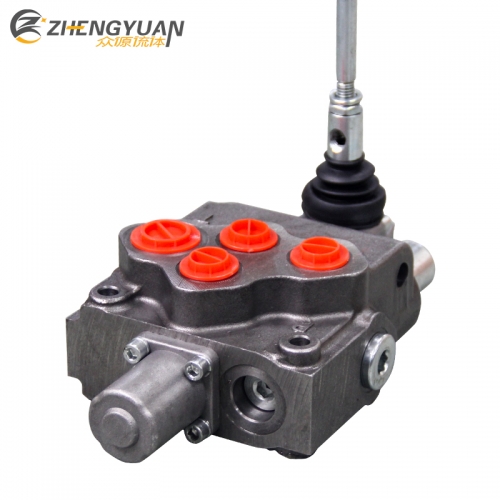

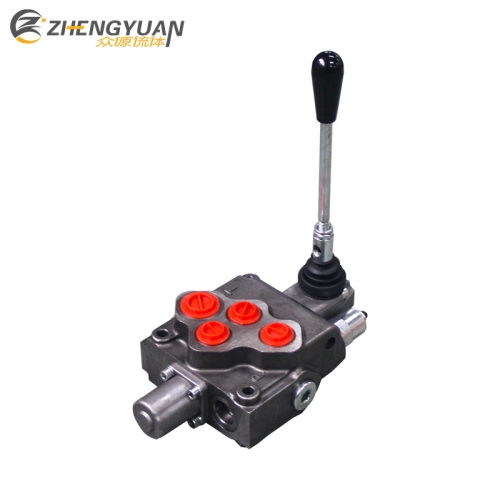

SD11 Hydraulic Directional Monoblock Control Valve

Brand :Zhongyuan

Product origin :China

Delivery time :30 days

Supply capacity :30 days

SD11 Hydraulic Directional Monoblock Control Valve

SD11 series integral valve has introduced European advanced technology, with compact structure, flow rate of 70L/min, light weight, high pressure resistance. The valve USES parallel oil circuit, designed with a pressure outlet and other hydraulic components connected to provide power source. The valve is widely used in construction machinery, sanitation machinery, oil field equipment, mining machinery and other machinery hydraulic system.


1 Fitted with a main pressure relief valve and a load check valve.

2 Available with parallel, series or tandem circuit.

3 Optional power beyond port (only for parallel or tandem circuit).

4 Diameter 20 mm - 0.79 in interchangeable spools.

5 A wide variety of service ports and circuit valves.

6 Available manual, pneumatic, hydraulic, electro-hydraulic and remote with flexible cables spool control kits.

Parameters

Nom.Pressure

(MPa)

Max.Pressure

(MPa)

Nom.Flow rate

(L/min)

Max.Flow rate

(L/min)

Back Pressure

(MPa)

Hydraulic Oil

Tem.rang

Visc.rang

(mm2/S)

Filtrating Accuracy

(μm)

20

31.5

70

70

1

-20+80

10400

10

Port Size

MAIN PORTS

BSP

UN-UNF

METRIC

Inlet P

G1/2

7/8-14 (SAE 10)

M18x1.5

Ports A and B

G1/2

3/4-16 (SAE 8)

M18x1.5

Outlet T

G3/4

7/8-14 (SAE 10)

M22x1.5

Carry-over C

G3/4

7/8-14 (SAE 10)

M22x1.5
