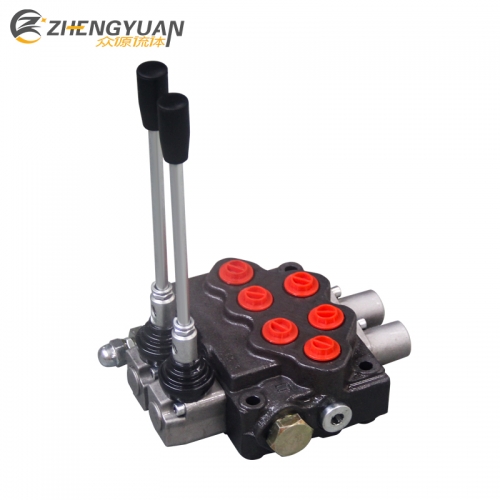

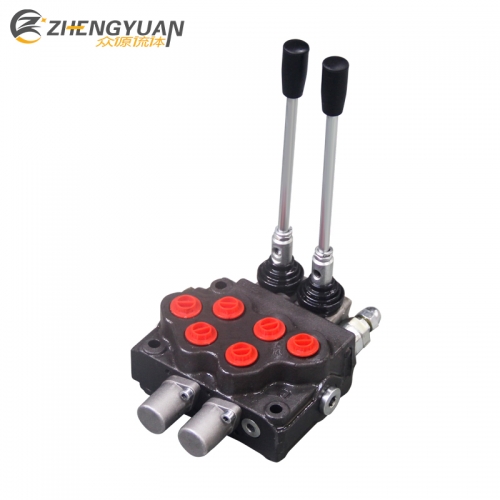

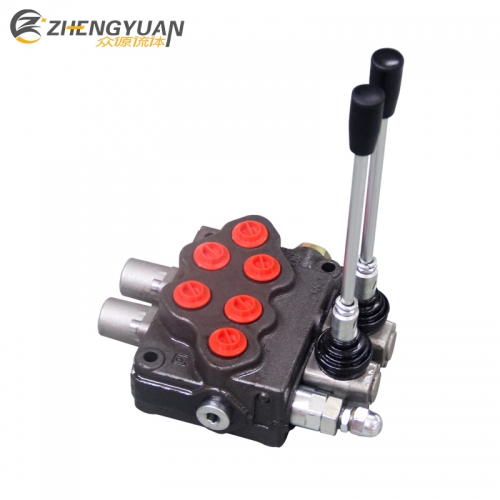

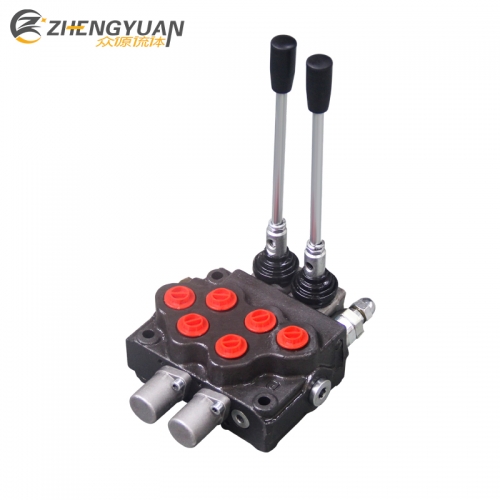

HM3 hydraulic directional monoblock control valve
Brand :Zhongyuan
Product origin :China
Delivery time :30 days
Supply capacity :10000 PCS per month
HM3 hydraulic directional monoblock control valve
SD5 series integral valve introduces the European advanced technology, with compact structure, flow rate of 45l/min, light weight, high pressure resistance. The valve USES parallel oil circuit, design a pressure outlet and other hydraulic components to provide power source. The valve is widely used in construction machinery, sanitation machinery, oilfield equipment, mining machinery and other machinery hydraulic system
Parameters
|
Nom.Pressure （MPa） |
Max.Pressure （MPa） |
Nom.Flow rate （L/min） |
Max.Flow rate （L/min） |
Back Pressure （MPa） |
Hydraulic Oil |
||
|
Tem.rang （℃） |
Visc.rang （mm2/S） |
Filtrating Accuracy （μm） |
|||||
|
20 |
31.5 |
45 |
45 |
≤1 |
-20～+80 |
10～400 |
≤10 |
Port Size
|
MAIN PORTS |
BSP |
UN-UNF |
METRIC |
|
Inlet P |
G3/8 |
3/4-16 (SAE 8) |
M18x1,5 |
|
Ports A and B |
G3/8 |
9/16-18 (SAE 6) |
M18x1,5 |
|
Outlet T |
G3/8 |
3/4-16 (SAE 8) |
M18x1,5, M22x1.5 |
|
Carry-over C |
M20x1.5 |
3/4-16 (SAE 8) |
M20x1.5 |
