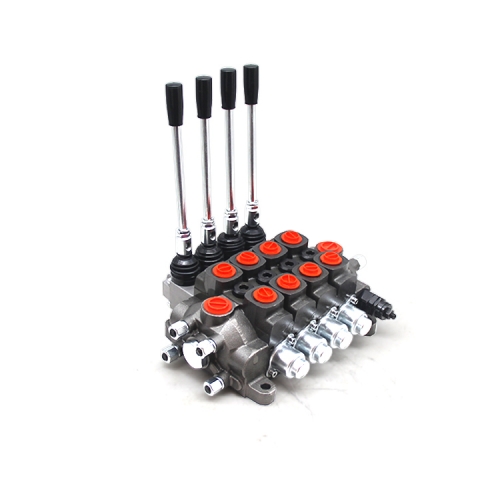

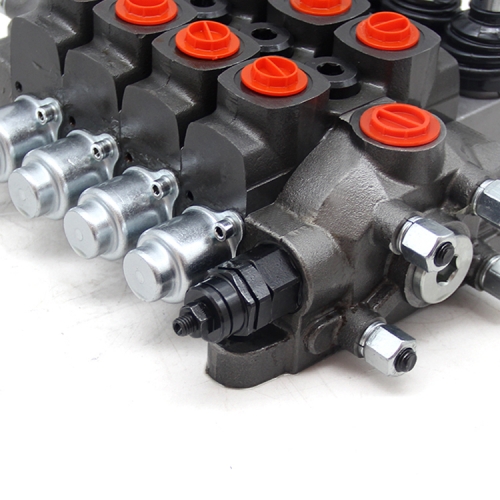

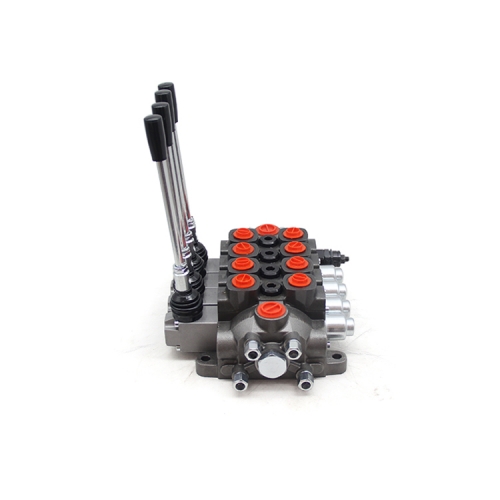

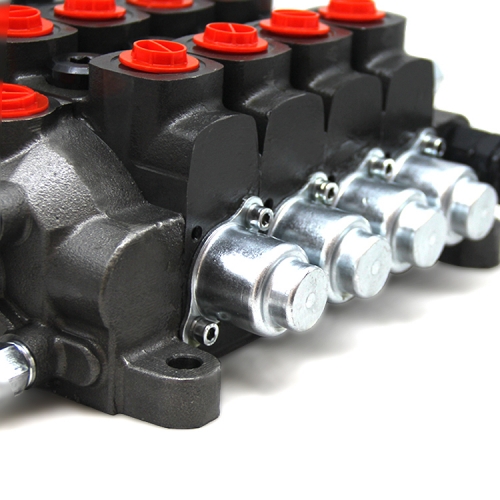

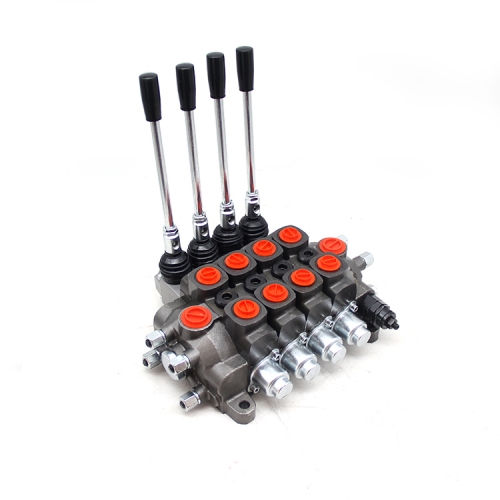

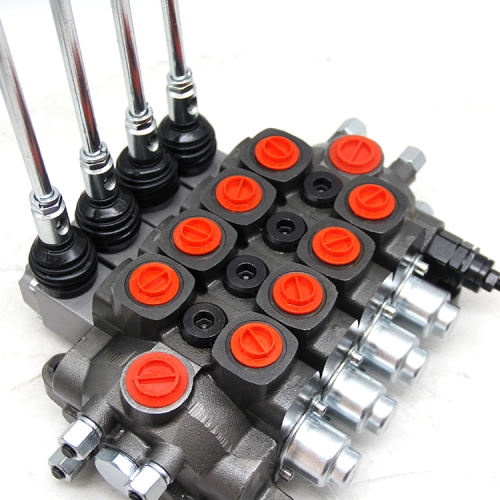

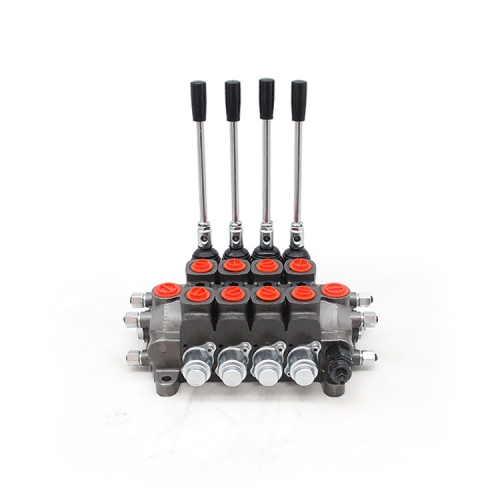

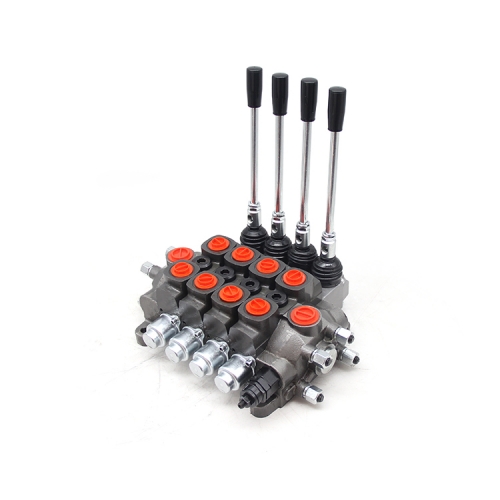

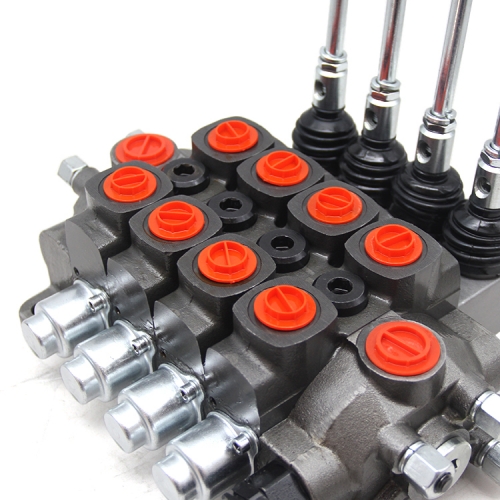

KV-15 Hydraulic Sectional Control Valve

Brand :Zhongyuan

Product origin :China

Delivery time :30 days

Supply capacity :10000 PCS per month

KV-15 Hydraulic Sectional Control Valve


KV17 is a compact, flexible and robust control valve for operating pressure 350bar and flows up to 90l/min. The valve is designed for high performance for open and closed center hydraulic systems.


Valve is equipped with an adjustable main relief valve

Available in parallel (in standard), series, tandem circuit

Load hold check valves in each section

Auxiliary valves

LS option

Wide range of spool options

Interchangeable Ø16mm Spools

Carry-over and closed center option


Manual, Pneumatic, Electro-Pneumatic, Hydraulic, Electro-Hydraulic, Electro-Hydraulic Proportional, Inlet Proportional, Mechanical Joystick, Remote Cable Control

Modification / Spools

From 1 to 12

Nominal flow

80 l/min

Leakage (A,B-T,P)

4-9cm3/min at 100 bar


Spool A, D

Spool stroke

3.2 mm

Coils, connector ISO 440

12, 24 V DC

Threads, G

P,A,B-G1/2. T-G3/4
