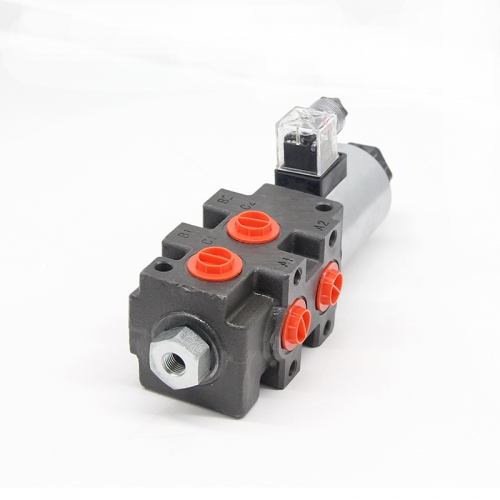

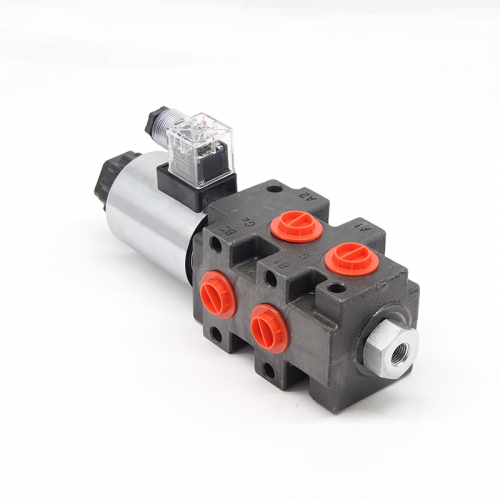

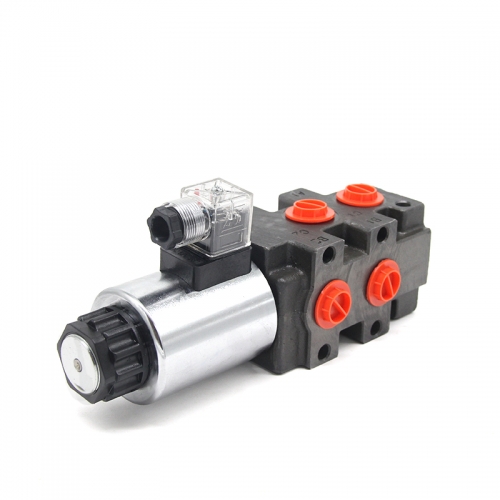

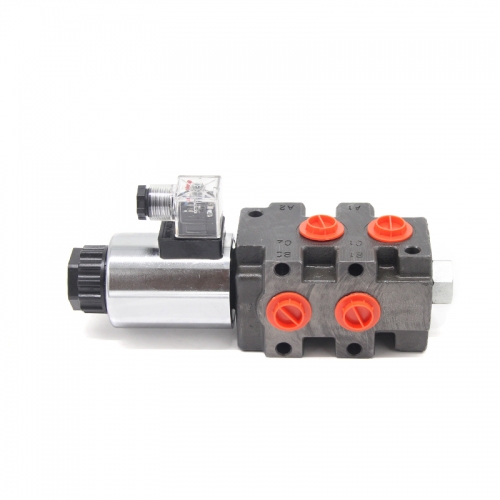

DVS90 hydraulic solenoid diverter control valve

Brand :Zhongyuan

Product origin :China

Delivery time :30 days

Supply capacity :10000 PCS per month

DVS90 hydraulic solenoid diverter control valve

1. 6-way with alternating spool; its sectional type to obtain 8-way or 10 way circuit.

2. Its possible to flange mounting a block with cross return anti-shock valves.
3. Coils with several feeding voltage are available.
4. They are used as link between two consumers and the basic directional valve,
when we want to control both consumers alternately by means of one basic directional control valve.
5. Diverters are used to add an extra facility to the directional control valve when it is needed for a sequence of operations
such as a safety operation or to control a selected hydraulic cylinder.
6. The stackable circuit selector valves allow one single drive fo 6 users with 5 diverters connected in series.
7. Please note the drainline must be connected back to tank at all times.

Ambient temperature

-30C...+50C

Fluid temperature

-20C...+70C

Nominal flow

90l/min

Max operating pressure, with/without L

315/210 bar

Viscosity

15-380 mm2/s

Filtration

9 to NAS 1638

Supply voltage , V

12;24 DC

Power , W

36;29

Switching frequency, 1/h

15000

Coil temperature

up to 180C
