ZD-l15 Monoblock Control Valve
Product origin :China
Delivery time :15 working days
Supply capacity :20,000 pieces per month

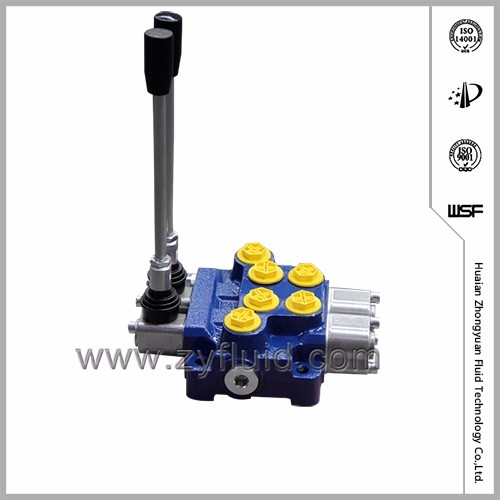

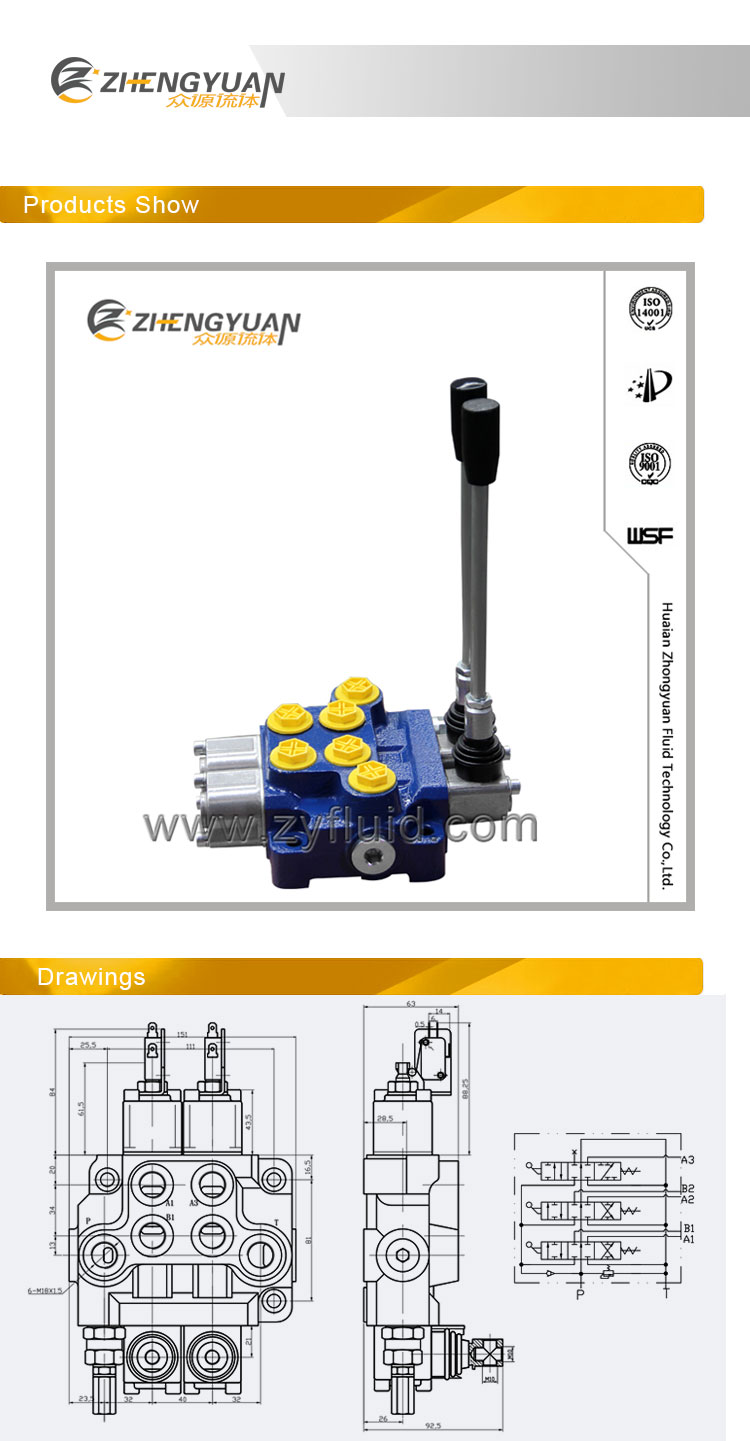

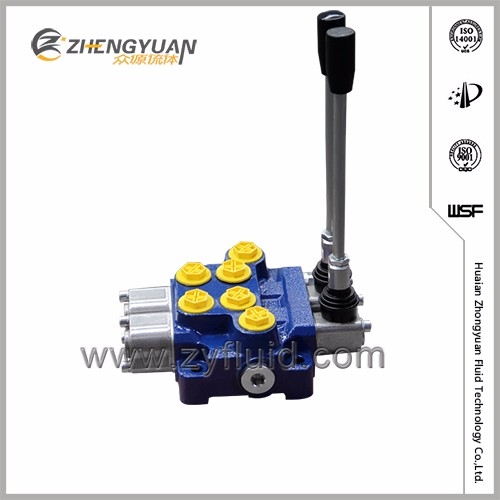

ZD-L15 Monoblock Directional Control Valve
PRODUCT INTRODUCTION ZD series
Monoblock Directional Control Valve
1. Nominal Flow:60L/min Max 63L/Min, Max Working Pressure 160-250Bar
2. Operation Methods: Pneumatic Control,Electrical and Pneumatic Cotrol;Micro Switch Control.
3. Positioning Return Modes: Ball locking;Spring Return
4. Spool Functions: O Y P A etc
5. Thread: G1/2; G3/4;M22*1.5;M27*2
6. Oil Way: Parallel Circuit, Power Beyond Option
7. Application: Agricultural Machinery;Lifting Machines,Construction Machine etc
Monoblock directional control valve has many outstanding features including high performance,high efficiency,small volume,mass flow and leak proof.
Q: Are you trading company or manufacturer?
A: We are factory. We are also looking for distributors around the world. If you are interested in our product or want to be a distributor,pls don't hesitate to contact us.
Q:Do you provide samples?
A: Yes, but we don't take the freight.
Q: How long is the warranty for the products?
A: Usually the warranty covers the product for a year. Please contact us for more details.
Q: how long is the production lead time?
A: It will take 10-20 days for production according to the quantity.
Q: What is the payment terms?
A: Payment amount <=1,000USD,100% payment in advance; amount>1,000USD,30% T/T in advance, balance before shipment
If you have any questions, pls don't hesitate to contact us.

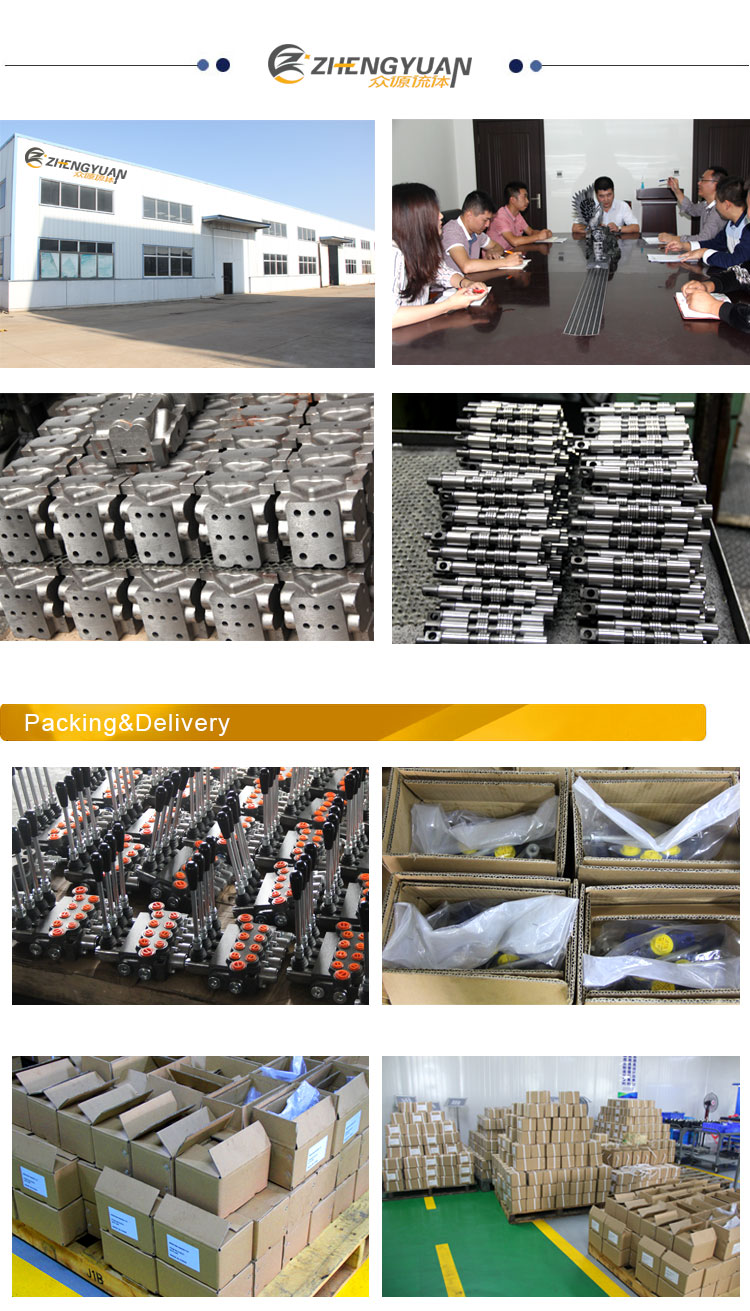

Huaian Zhongyuan Fluid Technology Co., Ltd was Established in 1990. With more than 27 years experience in the field, Zhongyuan now is definitely a professional manufacturer of high quality hydraulic directional control valves, gear pump and power unit.
Our factory is located in Huaian, Jiangsu province. It has more than 300 staffs include 100 engineers and technicians.
Regarding the requirement of the customers as its own responsibility. Zhongyuan would like to offer products of reliable quality and perfect after-sales service. We wish to create a bright future together with friends from both home and abroad.
Welcome to visit our factory!
