Brand :Zhongyuan

Product origin :China

Delivery time :15 working days

Supply capacity :10,000 pieces per month

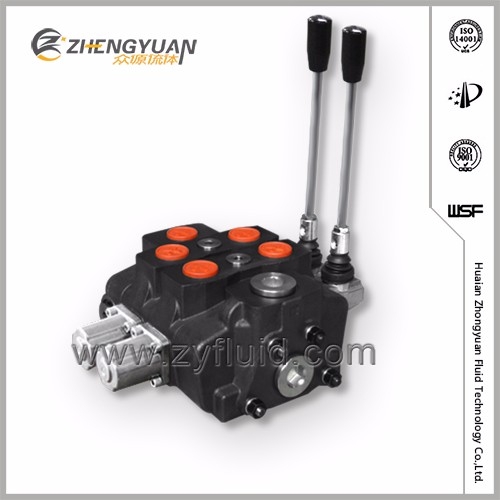

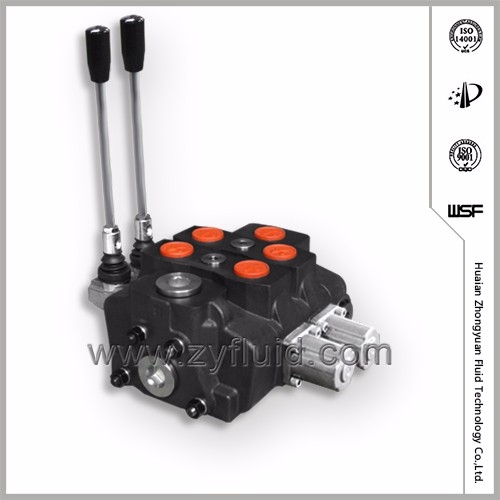

SDS180 Sectional Directional Control Valve


Product Name:

Sectional Directional Control Valve


Product No:




Spool Range:


Product Description:

1. Oil Way: Parallel Circuit, Power Beyond Option

2. Operation Methods: Mechanical control;Hydraulic Control;Pneumatic Control

3. Positioning Return Modes: Detent Control;Spring Return

4. Spool Functions: O P Y A etc

5. Thread: G3/4;7/8-14UNF;SAE12;

6.Nominal Flow:160L/min Max 160L/Min, Max Working Pressure 315Bar

7. Application: Tractor;construction and mining equipment; etc

8. Simple,compact and heavy duty designed,fitted with a main pressure relief valve

9. Spring material:high-class alloy;Body material:high strength cast iron;Spool material:high resistance nickel




Q: Are you trading company or manufacturer?

A: We are factory. We are also looking for distributors around the world. If you are interested in our product or want to be a distributor,pls dont hesitate to contact us.

Q:Do you provide samples?

A: Yes, but we dont take the freight.

Q: How long is the warranty for the products?
A: Usually the warranty covers the product for a year. Please contact us for more details.

Q: how long is the production lead time?

A: It will take 10-20 days for production according to the quantity.

Q: What is the payment terms?

A: Payment amount <=1,000USD,100% payment in advance; amount>1,000USD,30% T/T in advance, balance before shipment

If you have any questions, pls dont hesitate to contact us.

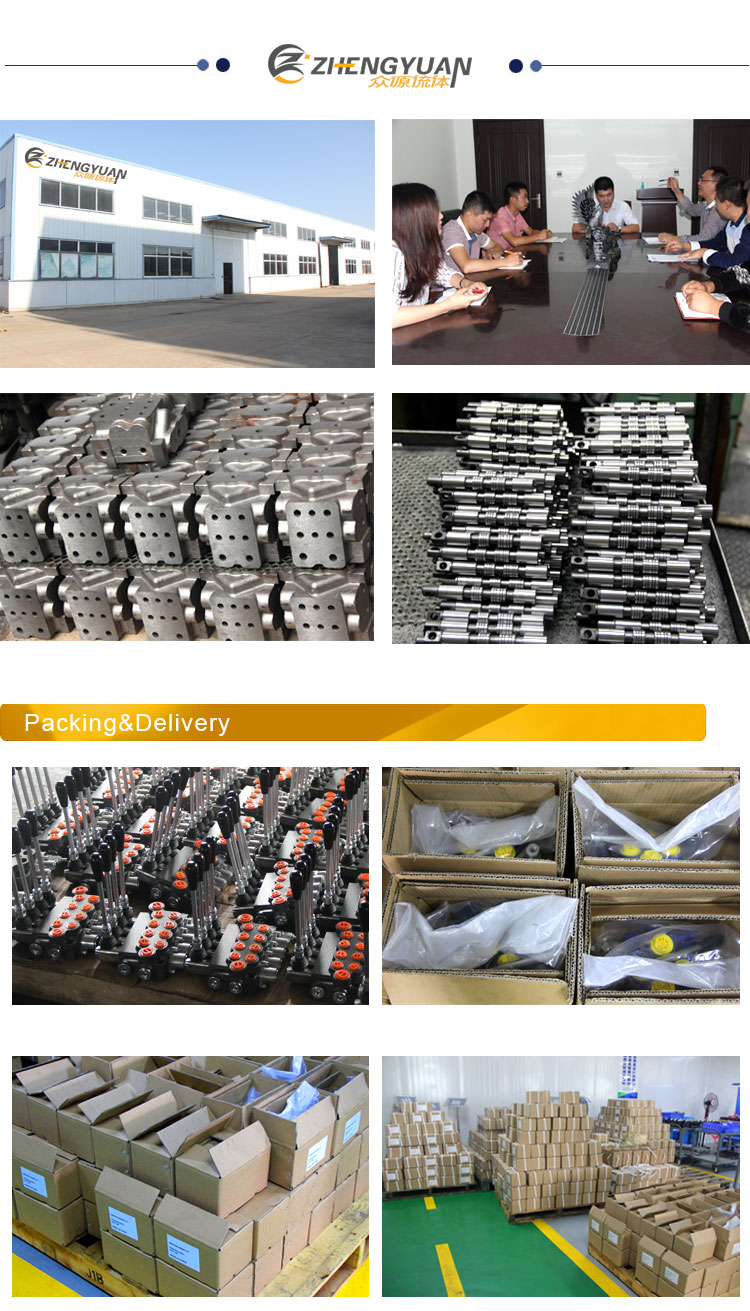

Company Profile

Huaian Zhongyuan Fluid Technology Co., Ltd was Established in 1990. With more than 27 years experience in the field, Zhongyuan now is definitely a professional manufacturer of high quality hydraulic directional control valves, gear pump and power unit.

Our factory is located in Huaian, Jiangsu province. It has more than 300 staffs include 100 engineers and technicians.

Regarding the requirement of the customers as its own responsibility. Zhongyuan would like to offer products of reliable quality and perfect after-sales service. We wish to create a bright future together with friends from both home and abroad.

Welcome to visit our factory!
