CBK Plain Key Shaft End
Brand :Zhongyuan
Product origin :China
Delivery time :15 working days
Supply capacity :25,000 pieces per month

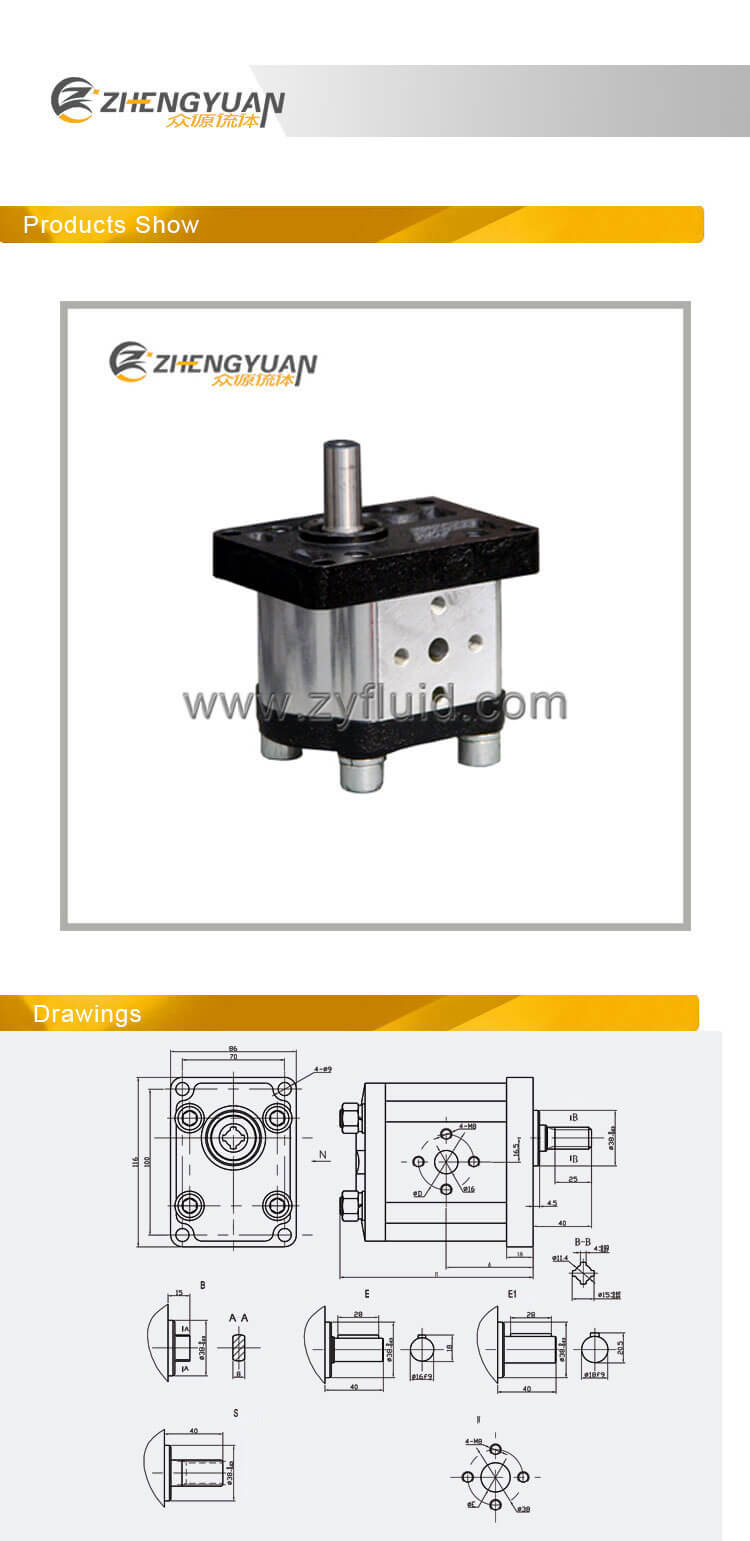

CBN-E3 hydrailic gear pump
Product Features:
1.Light weight,high pressure;
2.Automatic axial clearance compensation mechanism;
3.Reliable function;
4.Long life;
5.Aluminium alloy front cover and rear cover
|
Product Introduction |
||
|
Name |
Hydraulic Gear Pumps |
|
|
Brand |
Zhongyuan |
|
|
Item No. |
CBN-E3 series |
|
|
Rotation |
Left (counterclockwise); Right(clockwise) |
|
|
Join Port |
F (Flange); L (Screw) |
|
|
Pressure |
16-20 Mpa |
|
|
Shaft End |
P: Flat spline shaft end; H: Rectangular spline shafe end X: Involute spline shaft end S: SAE spline shaft end |
|
|
SPECIFICATIONS |
|||||
|
Model |
Theo.disp(ml/r) |
Rated pressure |
Max Pressure |
Rated Rotation |
Max Rotation |
|
CBN-E306 |
6 |
20 |
25 |
2500 |
3000 |
|
CBT-E308 |
8 |
||||
|
CBT-E310 |
10 |
||||
|
CBT-E312 |
12 |
||||
|
CBT-E314 |
14 |
||||
|
CBT-E316 |
16 |
||||
|
CBT-E320 |
20 |
||||
|
CBT-E325 |
25 |
||||
|
Working oil (mm²/s) |
Working oil temp (℃) |
Filtrating accuracy (μm) |
Volumetric efficiency （%） |
|
20-43 |
-20～-80 |
≤25 |
≥90 |
FAQ：
Q: Are you trading company or manufacturer?
A: We are factory. We are also looking for distributors around the world. If you are interested in our product or want to be a distributor,pls don't hesitate to contact us.
Q: How long is the warranty for the products?
A: Usually the warranty covers the product for a year. Please contact us for more details.
Q:Do you provide samples?
A: Yes, but we don't take thefreight.
Q: how long is the production leadtime?
A: It will take 10-20 days forproduction according to the quantity.
Q: What is the payment terms?
A: Payment amount <=1,000USD,100% payment in advance; amount>1,000USD,30% T/T in advance, balance before shipment
If you have any questions, pls don't hesitate to contact us.

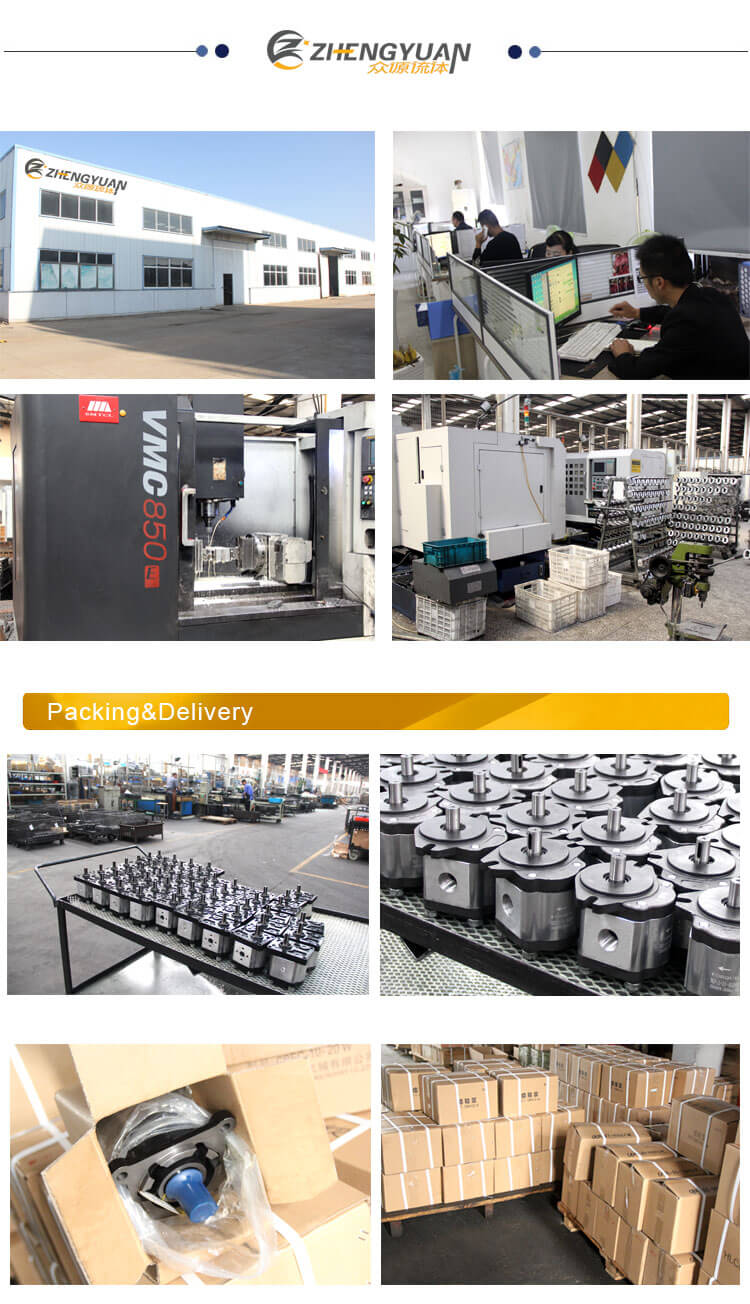

Company Profile
Huaian ZhongyuanFluid Technology Co., Ltd was Established in 1990. With more than 27years experience in the field, Zhongyuan now is definitely a professionalmanufacturer of high quality hydraulic directional control valves, gear pump and power unit.
Our factory islocated in Huaian, Jiangsu province. Ithas more than 300 staffs include 100 engineers and technicians.
Regarding therequirement of the customers as its own responsibility. Zhongyuan would like tooffer products of reliable quality and perfect after-sales service. We wish tocreate a bright future together with friends from both home and abroad.
Welcome to visit our factory!
