Home> Products> Hydraulic Gear Pump > CBT Square Mounting

CBT Square Mounting

Brand :Zhongyuan

Product origin :China

Delivery time :15 working days

Supply capacity :25,000 pieces per month

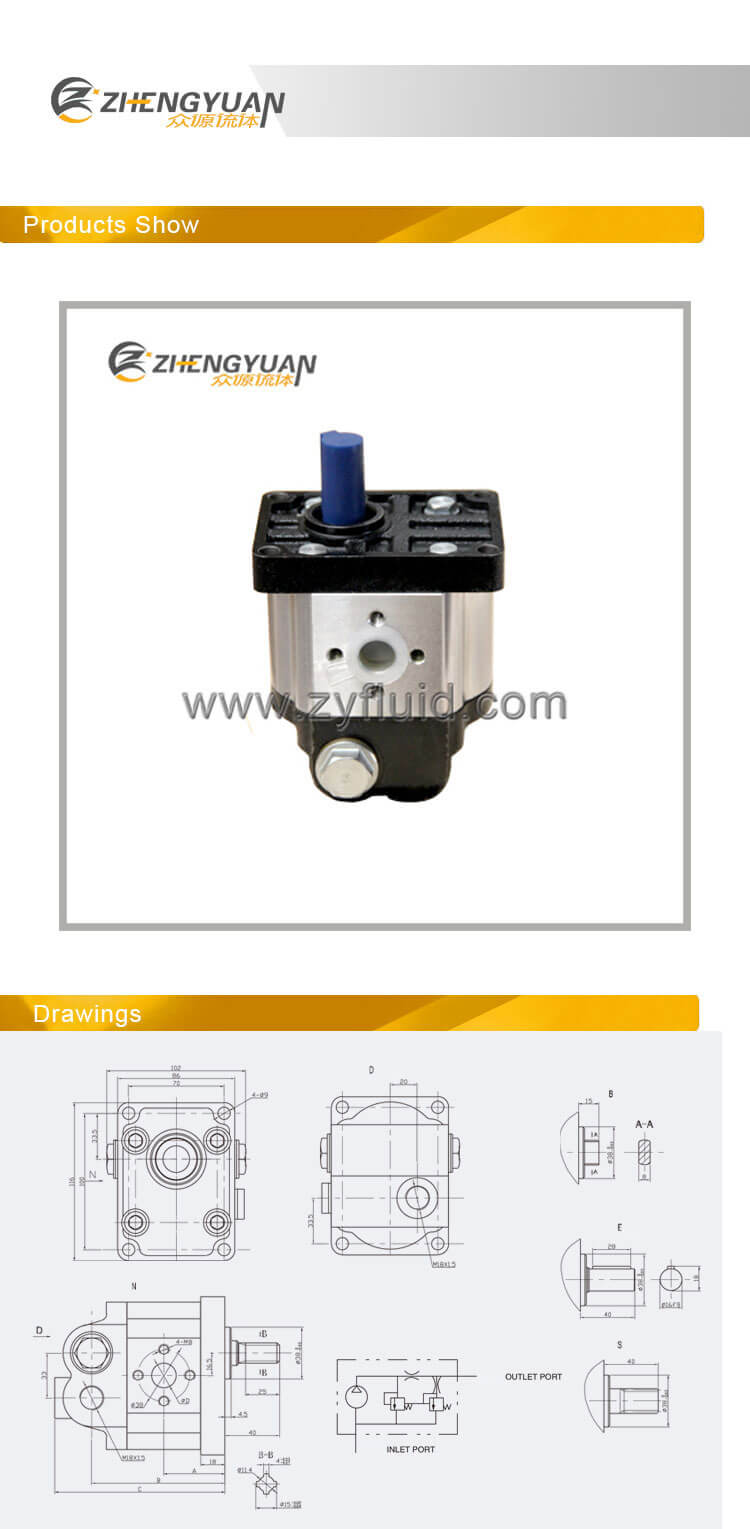

CBT-F4 hydrailic gear pump

Product Features:

1.low noise,high pressure,long life

2.Different ports availiable

3.high strength aluminium alloy front cover and rear cover

4.Automatic axial clearance compensation mechanism assures high volumetric efficiency for long time

5.Reliable function


Product Introduction

Name

Hydraulic Gear Pumps


Brand

Zhongyuan

Item No.

CBT-F4 series

Rotation

L:Left (counterclockwise); R:Right(clockwise)

Join Port

F (Flange);L(Screw)

Pressure

16-20 Mpa

Shaft End

H: Rectangle spline

P: Plain key shafe end

X: Involute spline

SPECIFICATIONS

Model

Theo.disp(ml/r)

Rated pressure

Max Pressure

Rated Rotation

Max Rotation

CBT-F410

10

20

25

2500

3000

CBT-F412.5

12.5

CBT-F414

14

CBT-F416

16

CBT-F418

18

CBT-F420

20

CBT-F425

25

CBT-F426.5

26.5

CBT-F430

30

CBT-F432

32

Working oil (mm²/s)

Working oil temp (℃)

Filtrating accuracy (μm)

Volumetric efficiency (%)

20-43

-20~-80

≤25

≥90

HLCB 恒流泵 法兰 法兰 E型轴伸.jpg


FAQ:

Q: Are you trading company or manufacturer?

A: We are factory. We are also looking for distributors around the world. If you are interested in our product or want to be a distributor,pls don't hesitate to contact us.

Q:Do you provide samples?

A: Yes, but we don't take thefreight.

Q: How long is the warranty for the products?
A: Usually the warranty covers the product for a year. Please contact us for more details.

Q: how long is the production leadtime?

A: It will take 10-20 days forproduction according to the quantity.

Q: What is the payment terms?

A: Payment amount <=1,000USD,100% payment in advance; amount>1,000USD,30% T/T in advance, balance before shipment

If you have any questions, pls don't hesitate to contact us.

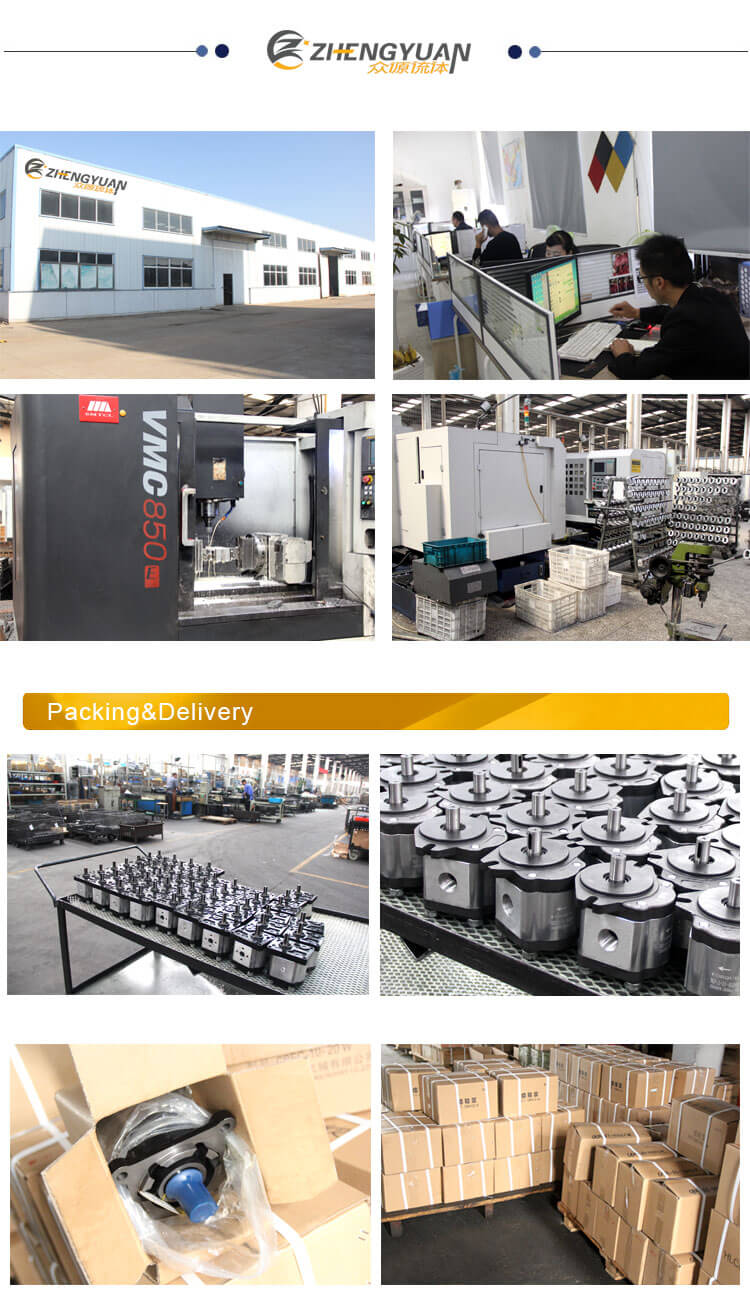

Company Profile
